 Application

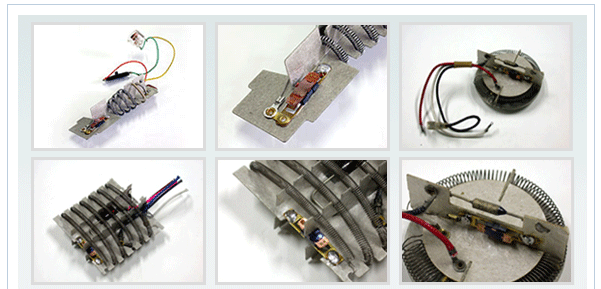

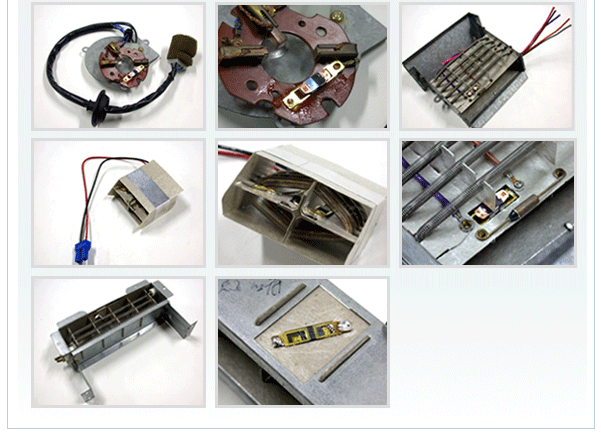

Overheat protection for Hair Dryer, Electric Fan Heaters, Popcorn Machines, Electric Ovens, Dish Dryers ETC. |
Temperature setting range (at no load)
70°C ~ 150°C |
Tolerance
±5°C |
ON-OFF differential temp. (general)
MIN. 10 deg. |
Heat Endurance
Open temp. +50°C/continuity, 200°C/1min. |
Life Test (Resistive load)
15A/125V 6,000 cycles, 10A/250V 6,000 cycles |
Contact Capacity
Min. Current 100mA/repeat, Max. Current 30A/5 cycles |
|
| |
 |
|
 |
 |
|
 |
|
