| HOME>Products>ST-22(type W) |
| |
|
 Application

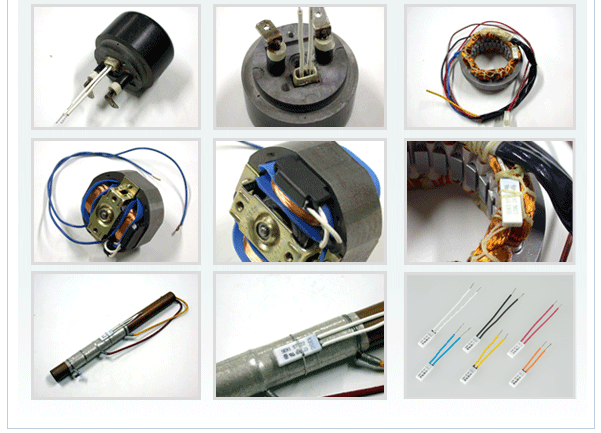

Overheat Protection for Electric Motors, Fluorescent Ballasts, Battery Chargers, Transformers, Solenoids, Heating pads, OA-Machines ETC. |
Temperature Setting range (at no load)
70°C ~ 150°C |
Tolerance
±5°C |
ON-OFF Differential Temp (general)
30 ± 15K |
Heat Endurance
Open temp. +50°C/continuity, 200°C/1 min. |
Life test (Resistive Load)
8A/125V 10,000 cycles, 5A/250V 10,000 cycles |
Contact Capacity
Min. Current 50mA/continuity, Max. Current 30A/5 cycles |
| |
 |
|
 |
 |
|
 |
|
